PROTECT FROM ABRASION WITH HFT5000 HEAT SHRINK FABRIC TUBING

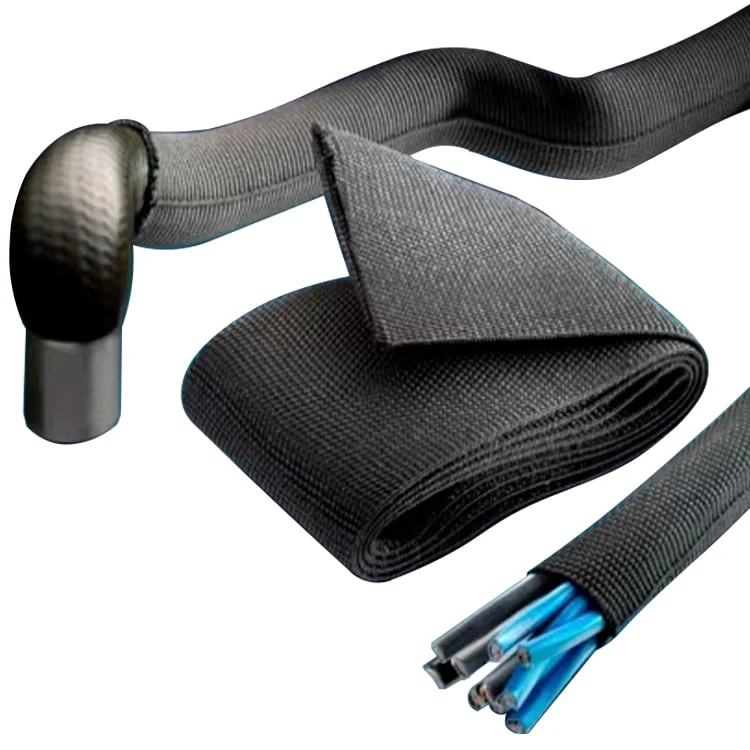

Provide excellent abrasion resistance with HFT5000 heat shrink fabric tubing. This Raychem tubing product is woven from polyethylene and polyester materials and is halogen-free. Its tightly woven filaments provide excellent abrasion resistance, while also resisting the trapping of water, heat and humidity within the tubing. HFT5000 tubing's highly flexible nature permits easy installation onto irregularly shaped substrates such as bent hoses and wiring harness bundles. It shrinks at a 2:1 ratio at a relatively low shrink temperature to protect heat-sensitive substrates.
Features:
Heat-shrinkable, to grip substrates tightly without additional fixing
2:1 shrink ratio for easy installation onto substrate diameter transitions
Highly flexible woven construction for easy, compliant installation onto irregular substrates
Low shrink temperature for safe installation onto heat-sensitive substrates
Provides abrasion resistance over a wide temperature range
Broad range of sizes accommodate many different applications
Resistant to harsh environments
Easily cut with standard industrial cutting equipment
Non-halogenated material permits use in enclosed areas
TEMPERATURE RATING
Operating Temperature Range (3000 hours) : -40°C to 125°C
Operating Temperature Range (1000 hours) : -40°C to 150°C
Minimum Recovery Temperature : 80°C
Minimum Full Recovery Temperature : 110°C
STANDARDS AND SPECIFICATIONS
Product Specification RW-2060
UL (E199379) Rated at 105°C
Sold by: 1 meter
