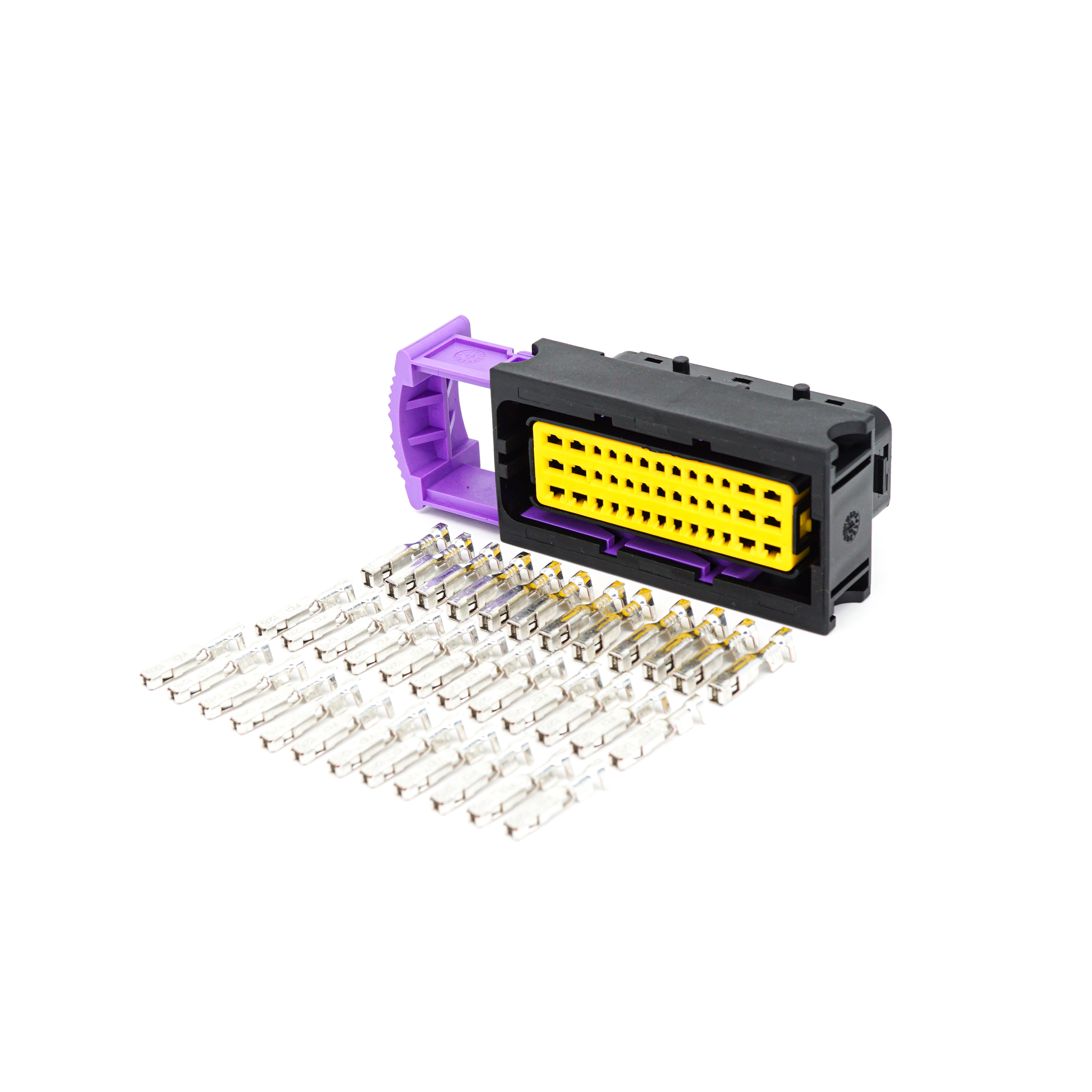

PMU-16 DL Connector Kit

GENERAL SPECIFICATIONS

• Temperature range AECQ100 GRADE1 (-40 to 125˚C) CPU 32 bits, 90MIPS

• Reverse polarity protection Yes, internal

• Operating voltage 6-22V, immunity to transients according to ISO 7637

• Enclosure IP 60, bespoke CNC machined aluminum

• Size (mm) and weight(g) 131x112x32.5, 345g

• Connectors 1 x 39 position connector, 1 x M6 stud for battery connection

• PC communication CAN (PCAN, ECUMASTER USBCAN)

• OUTPUTS

• High current outputs 10 x 25A(cont.), 6 x 15A(cont.) with Overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output

• Total current output 150A continuous

• Output current control step 100mA

• Wipers output

• Dedicated output with wiper braking feature

• Monitored 5V, 500mA output for powering external sensors.

• INPUTS

• Analog inputs 16 inputs, 10 Bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns

• CAN Keypads 2 x Ecumaster keypads (4, 8, 12 keys)
